Installation Height, Mounting Orientation, and ADA Compliance for Automatic Soap Dispensers
Automatic soap dispensers have a direct effect on accessibility, user comfort, and maintenance efficiency. Good placement supports reach range compliance, reduces protrusion risks, and helps commercial restrooms perform better over time.
CommercialSoapDispenserAuto.com
Automatic soap dispensers are a small accessory with a big impact on restroom usability. If they are mounted too high, placed beyond reach over a deep counter, or protrude into circulation paths, they can trigger accessibility issues and post-occupancy complaints. In high-traffic commercial restrooms, poor placement also increases maintenance calls because dispensers get bumped, tampered with, or serviced awkwardly.
For AEC teams, soap dispenser setup should be treated as a coordinated layout decision tied to reach ranges, approach clearances, mounting orientation, and service access.
Working definition
In this article:
ADA compliant placement means the operable portion of the dispenser is within required reach ranges, the unit does not create protruding object hazards along circulation paths, and the control can be used with one hand without tight grasping, pinching, or twisting.
Operable portion means the part a user must activate. For automatic dispensers, that is typically the sensor activation zone and any push button, lock, or manual override that is intended for user operation.
Core ADA reach range targets for soap dispensers
Unobstructed reach range
A common baseline is:
- High reach: 48 inches maximum above finished floor
- Low reach: 15 inches minimum above finished floor
The Access Board operable parts guide summarizes reach range requirements and notes that forward and side reach ranges are commonly 15 inches to 48 inches when unobstructed.
Access Board operable parts guide
ICC A117.1 also uses the same basic unobstructed reach range values for forward reach.
ICC A117.1 reach range building blocks
Obstructed reach over a counter matters more than people expect
Soap dispensers are often mounted above lavatory counters or behind basins. A deep counter can reduce allowable reach height depending on approach depth and the governing standard adopted by the project jurisdiction.
Older A117.1 reach language shows that the high forward reach can reduce when the reach depth exceeds typical limits. This is one reason many design teams choose conservative mounting heights when dispensers sit over counters.
Older ANSI A117.1 reach reference
Practical design takeaway:
- If the dispenser is over a counter, do not assume the 48 inch high reach applies without checking obstruction depth conditions.
- Consider mounting heights that remain compliant even if the counter depth or basin projection changes during value engineering.
Common commercial height guidance used by design teams
Many accessory planning guides provide practical maximums that help avoid reach disputes.
Bobrick’s accessible restroom planning guide states a soap dispenser mounting height of 44 inches maximum above finished floor and notes spacing to avoid interference with lever-handle faucets.
Bobrick accessible restroom planning guide
Why this matters in projects:
- A 44 inch maximum is often used as a conservative target that reduces risk in obstructed reach conditions.
- It helps when dispensers are mounted over counters, near mirrors, or in tight sink alcoves.
Always confirm local code adoption. ADA standards, ICC A117.1, and state amendments can differ.
| Requirement Area | Typical Value | Why It Matters |
|---|---|---|
| Unobstructed high reach | 48 inches max AFF | Supports standard accessible use of operable parts |
| Unobstructed low reach | 15 inches min AFF | Helps maintain usability for seated users |
| Conservative commercial target | 44 inches max AFF | Helps reduce issues above counters and sink decks |
| Projection into path | 4 inches max | Reduces protruding object hazards in circulation areas |
Mounting orientation options and what to coordinate
Wall mounted, surface mounted
Common in institutional and retrofits.
Coordination items:
- Confirm reach range to the sensor zone
- Confirm the unit does not protrude into circulation paths
- Provide blocking and secure anchors for heavier stainless units
- Confirm lock access does not require awkward reach
This mounting style can create protruding object issues if placed in narrow circulation zones.
Wall recessed
Common in new builds and high-design restrooms.
Advantages for compliance:
- Reduced protrusion risk
- Cleaner visual integration
- Often easier to keep within reach without creating hazards
Coordination items:
- Confirm wall depth and framing
- Confirm fire rating and penetration details if applicable
- Confirm service access for batteries or power supplies
Countertop or deck mounted
Less common for soap dispensers than faucets, but used in some design-driven interiors.
Coordination items:
- Reach to the operable portion for seated users
- Relationship to basin centerline and faucet swing area
- Soap drip control and deck staining risk
- Under-counter access for refill or power modules
Protruding objects rule and why it affects soap dispensers
Wall mounted accessories can become cane-detection hazards if they project too far into circulation paths.
The ADA protruding objects rule limits projection for objects with leading edges between 27 inches and 80 inches above finished floor to 4 inches maximum into the circulation path.
Access Board protruding objects guide
Access Board protruding objects PDF
Bobrick’s planning guide repeats the same practical concept, recommending limiting protrusion to 4 inches between 27 inches and 80 inches above the floor.
Design strategies that reduce risk:
- Use recessed dispensers in narrow corridors and tight restroom entries
- Locate protruding accessories in alcoves or between wing walls
- Avoid mounting dispensers on return walls that act like pinch points
Operable parts requirements for dispenser controls
Even touchless dispensers can have operable parts like manual overrides, locks, or buttons. ADA requirements also cover how controls operate.
The 2010 ADA Standards state that operable parts must be usable with one hand, must not require tight grasping, pinching, or twisting of the wrist, and must require 5 pounds of force maximum.
2010 ADA Standards for operable parts
The Access Board operable parts guide summarizes the same requirements and provides plain-language examples.
Access Board plain-language operable parts guide
Specifier checklist:
- Avoid tiny twist locks that require finger dexterity if the user must operate them
- Confirm manual override buttons are within reach and low-force
- Ensure refill access and locks are staff-only and do not conflict with public operability requirements

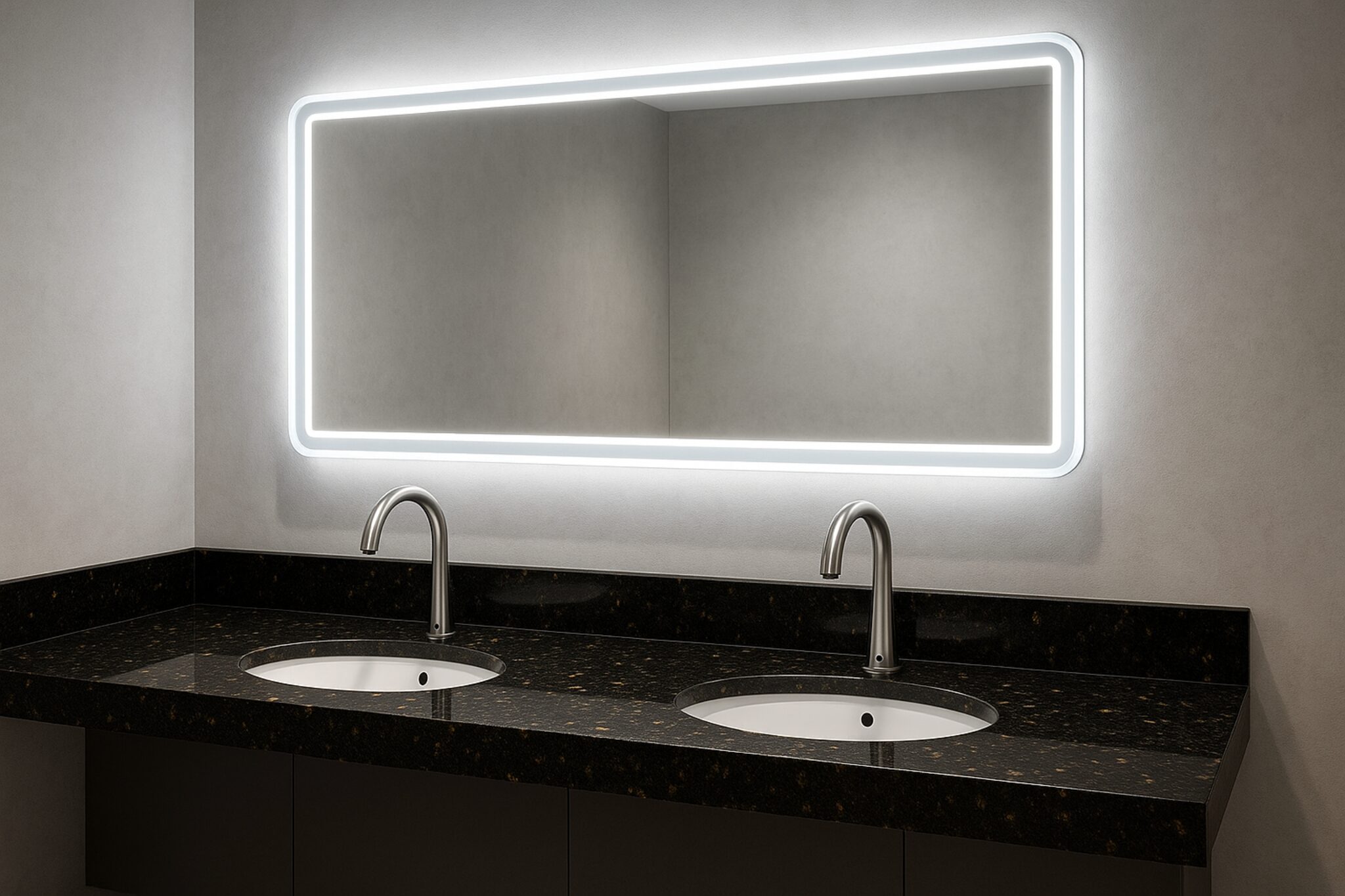

Placement coordination with lavatories, faucets, and accessories
Soap dispenser location should be coordinated with:
- Faucet spout and handle movement
- Sensor faucet activation zones
- Mirror edges and backsplash heights
- Paper towel or hand dryer reach zones
- Trash placement so users do not drip across circulation paths
Bobrick’s planning guide notes spacing lavatory-mounted soap dispensers and lever-handle faucets apart to avoid operational interference.
Bobrick planning guide reference
Practical coordination steps:
- Place dispenser so a user can reach it without leaning over the basin
- Avoid placing it directly above the faucet where splash can foul the sensor window
- Keep it close enough to the basin to reduce drips on the floor
Field mistakes that trigger accessibility issues
- Mounting to the top of the dispenser instead of the operable portion
Always measure to the operable part, such as the sensor zone or push area, not the top of the housing. - Placing dispensers over deep counters without checking obstructed reach limits
Counter depth changes allowable reach height in many standards.
Older A117.1 reference PDF - Creating protruding object hazards near entries or in narrow paths
Stay within protrusion limits or use recessed accessories.
Protruding objects PDF - Putting manual override or lock controls out of reach or requiring twisting force
Operable parts must meet one-hand, low-force expectations.
ADA Section 309.4 - Ignoring maintenance access
If batteries, refills, and service panels are hard to reach, staff workarounds often cause damage and misalignment over time.
Additional retrofit planning points
In retrofit projects, dispenser placement often gets limited by existing mirrors, tile joints, old sink centerlines, or available blocking. That makes field coordination even more important. A dispenser that looks fine on a plan can still end up too far back over the counter once the bowl, faucet, backsplash, and mirror are installed.
For better long-term results, verify the actual hand approach at the sink before final mounting. This is especially useful in busy public restrooms where refill access, splash control, and user reach all need to work together without creating a maintenance burden.
Teams also benefit from selecting a location that reduces drips onto the floor while still keeping the user-operable area comfortably accessible. That balance improves both daily usability and upkeep.
Quick ADA review before sign-off
This simple review can help reduce change orders, accessibility complaints, and post-install adjustments.
Example basis of design references
Access Board guide on operable parts and reach ranges
https://www.access-board.gov/ada/guides/chapter-3-operable-parts/
Access Board guide and PDF on protruding objects
https://www.access-board.gov/ada/guides/chapter-3-protruding-objects/
https://beta.access-board.gov/files/ada/guides/protruding-objects.pdf
2010 ADA Standards reference for operable parts operation and force
https://codes.iccsafe.org/s/ADA2010P1/chapter-3-building-blocks/ADA2010P1-Ch03-Sec309.4
ICC A117.1 reach range building blocks
https://codes.iccsafe.org/content/icca117-12017/chapter-3-building-blocks
Bobrick accessible restroom planning guide with accessory heights and protrusion notes PDF
https://www.bobrick.com/wp-content/uploads/APG-Accessible-Restrooms_Commercial.pdf
Conclusion
Installing automatic soap dispensers correctly is a coordination task, not just a mounting height choice. The strongest commercial restroom layouts keep the operable portion within reach ranges, avoid protruding object hazards, and ensure controls meet operable parts requirements.
When mounting orientation, counter depth, and accessory locations are coordinated early, projects reduce accessibility risk and improve long-term usability and maintenance performance.
