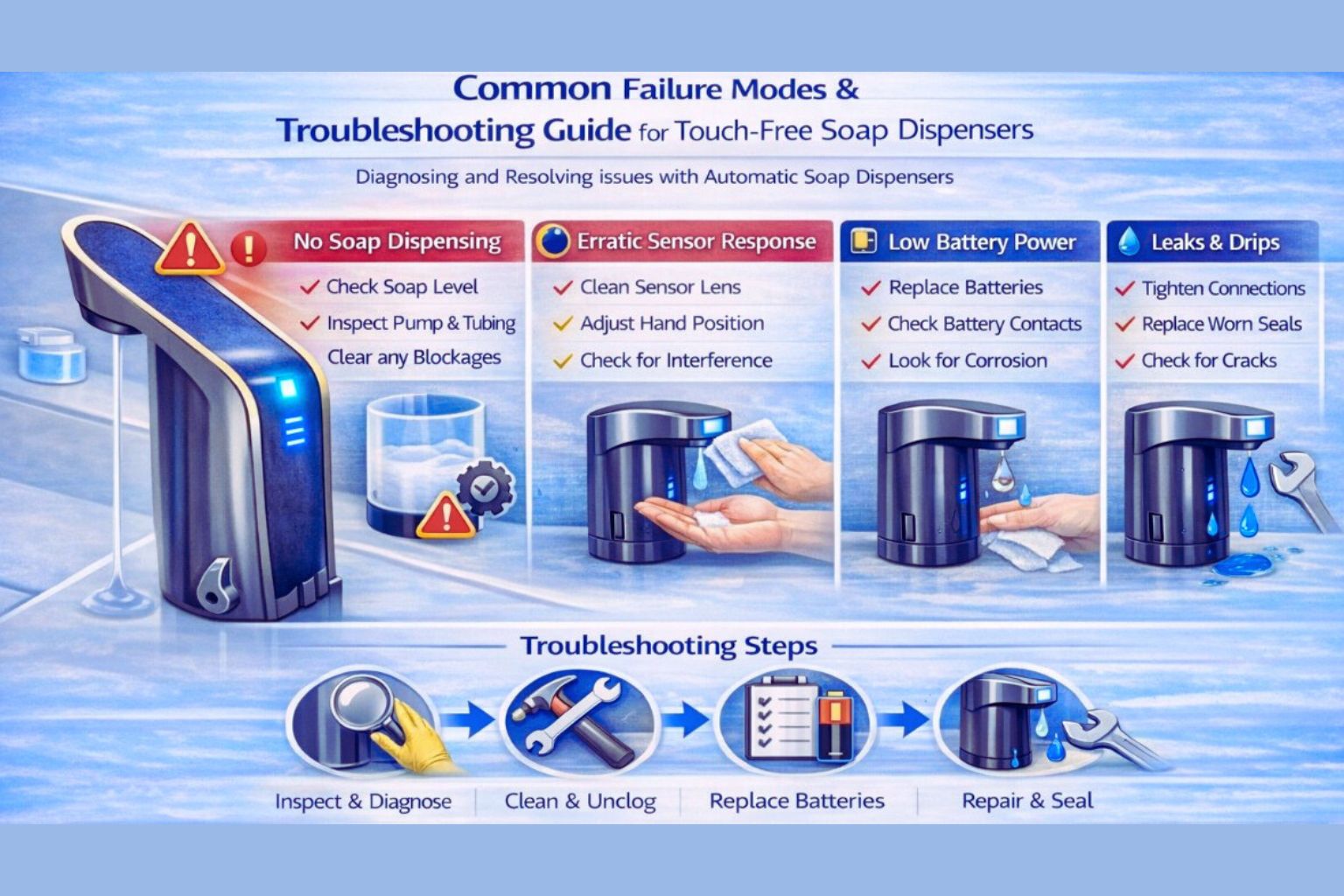

Common Failure Modes & Troubleshooting Guide for Touch-Free Soap Dispensers

Touch-free soap dispensers are simple in concept: a sensor detects hands, a pump runs for a set dose, and a refill system supplies product. In commercial restrooms, failures usually cluster into a few repeatable categories: power and calibration, product flow issues (viscosity and clogs), sensor line-of-sight problems, and mechanical wear at valves and seals.

This guide is written for AEC and facility teams who need to diagnose problems quickly on site, document corrective actions, and reduce repeat service calls. The steps reference common manufacturer troubleshooting guidance and published hygiene research for bulk refill systems.

Working definition

Failure mode: a repeatable symptom pattern with a known set of likely causes.
Troubleshooting: a step-by-step process that isolates the cause with minimal disassembly.
Touch-free dispenser: a sensor-activated soap dispenser, commonly infrared-based, using batteries or low-voltage power.

The fast triage workflow (use this before opening the unit)

Step 1: Identify the symptom category

No dispense at all
Dispenses intermittently
Weak dose or slow dispensing
Double shots or continuous dispensing
Leaks, drips, or soap on the deck
Foaming issues (watery foam, no foam)
Odor, discoloration, or suspected contamination (bulk systems)

Step 2: Confirm installation and environment in 30 seconds

Is the sensor window clean and dry
Is the unit aimed at reflective surfaces or seeing faucet water
Is there a bright light reflecting into the sensor
Is the soap dispensing over the basin bowl or onto the counter

A common manufacturer warning is to avoid installation conditions that cause false triggering, including sensor exposure to faucet running water and user cuffs.

Step 3: Check power and reset behavior

Many touch-free dispensers use indicator lights to show status and faults. GOJO LTX troubleshooting guidance includes light reference behavior and notes that the dispenser may take time to activate after service as it calibrates to lighting conditions.

Failure mode 1: Unit does not dispense

Most likely causes

Dead or weak batteries
Refill empty or not seated correctly
Pump not primed after refill
Sensor lens blocked by film or residue
Internal clog at nozzle tip or mixer

Field checks and fixes

Observe the indicator light behavior and replace batteries if indicated. Many systems provide a ready or low-power signal pattern.
Verify refill seating and that the product path is open (cartridge valve, pickup tube, or reservoir cap).
Prime the dispenser per manufacturer procedure. Some systems require multiple activations to re-prime after servicing.
Inspect and clean the nozzle tip and mesh screen if present. Bobrick’s B-828 troubleshooting guide lists clogged nozzle tip and mesh screen as a likely cause and recommends soaking in warm water and flushing the system.

Supporting document for a common touchless platform:
https://cdnimg.webstaurantstore.com/documents/pdf/ltx_-_troubleshooting_guide.pdf

Failure mode 2: Dispenses intermittently or only sometimes

Most likely causes

Sensor blind zone due to mounting height or hand position mismatch
Auto-calibration period after service
Environmental reflections or moving backgrounds
Low battery under load (works once, fails on repeat)
Soap viscosity outside recommended range causing slow recovery

Field checks and fixes

Wait out post-service calibration when applicable, then re-test. GOJO troubleshooting guidance describes auto-calibration to lighting conditions after closing the cover.
Test activation at multiple positions over the basin. If users must hunt for the spot, the activation zone does not match the sink zone geometry.
Remove reflective triggers: mirror glare, glossy backsplash alignment, and water stream line-of-sight. Manufacturer guidance warns to avoid conditions that create inadvertent triggering and to prevent the sensor from seeing running water.
Verify soap viscosity compatibility. Some commercial spec sheets state acceptable viscosity ranges for the soap used.

Failure mode 3: Weak dose, slow dispense, or partial shots

Most likely causes

Soap too thick, cold, or incompatible with pump design
Partial clog at nozzle, mixer cartridge, or check valve
Air intrusion in pickup tube (bulk or multi-feed)
Reservoir venting issue causing vacuum lock

Field checks and fixes

Confirm soap type and viscosity match manufacturer limits. Bradley installation and maintenance guides commonly include soap recommendation sections and warn that product choice affects consistent flow and clogs.
Warm-water cleaning for nozzle and mixer components when residue is suspected. Bobrick’s troubleshooting guidance uses warm water soaking and system flushing as a corrective action for clogs.
Inspect tubing connections for kinks, loose fittings, or air leaks in multi-feed or bulk top-fill setups.
Check the venting path (top-fill ports and vent tubes on certain designs) if the unit is hard to refill or output decreases during a dispense cycle. Bradley notes design features like venting support in some top-fill systems to aid refill behavior.

Failure mode 4: Double shots, continuous dispensing, or nuisance activation

Most likely causes

Sensor sees moving water stream or sleeve movement
Mirror or polished surface reflecting into sensor window
Dispenser aimed into a corridor or pass-by traffic zone
Sensor window contaminated by soap film or cleaner residue

Field checks and fixes

Eliminate line-of-sight to faucet stream and shiny fixtures when the unit is firing with the water on. Manufacturer O and M guidance warns to prevent the sensor from seeing faucet running water and user cuffs.
Reposition within the sink zone so the detection field is centered over the basin.
Clean the sensor window with non-abrasive methods to remove films that can scatter IR light.
Re-test after lighting changes: daylight reflections can create nuisance triggers at certain times of day.

Failure mode 5: Leaks, drips, or soap pooling on the deck

Most likely causes

Over-dosing or too short lockout time (repeat triggers)
Nozzle tip damaged or mesh screen torn
Check valve failure or seal wear
Dispense point located over counter instead of basin

Field checks and fixes

Confirm dose settings and lockout behavior if the unit allows adjustment or remote configuration.
Inspect nozzle tip mesh and replace if torn. Bobrick’s troubleshooting guide links foam quality and performance issues to the nozzle tip mesh and provides part references.
Check mounting location: if soap drops onto the deck instead of the bowl, nuisance mess is likely even when the dispenser is functioning correctly.

Failure mode 6: Foam quality problems (watery foam, no foam, or spitting)

Most likely causes

Soap is too watery or wrong formulation for foaming mechanism
Mesh screen torn, mixer cartridge clogged, or air mixing failure
Dilution errors in bulk systems

Field checks and fixes

Bobrick’s B-828 troubleshooting guidance includes foam quality diagnostics, including actions like adjusting settings and replacing mesh screen components if torn.
Confirm that a foam-rated dispenser is not being supplied with incompatible liquid soap or improperly diluted concentrate.
Flush and clean the mixer and nozzle pathway if foam is inconsistent.

Failure mode 7: Odor, discoloration, or suspected contamination (bulk refill systems)

This is not only a performance issue. It can be a hygiene risk.

A peer-reviewed Applied and Environmental Microbiology paper reports that bulk-soap-refillable dispensers are prone to extrinsic bacterial contamination and that washing with contaminated soap can increase bacteria on hands.

Field indicators

Cloudy product, off odor, visible biofilm residue
Increased complaints of skin irritation or unpleasant soap feel
Inconsistent dosing as valves foul

Corrective actions

Drain and discard product, clean reservoir per manufacturer and facility protocol
Implement a no top-off policy (do not add new soap into old soap)
Consider sealed refills for facilities with high staff turnover or inconsistent cleaning practices

Reliability and safety: do not ignore mounting and anchorage

Wall-mounted dispensers fail structurally when backing and anchors are inadequate. Bradley installation and maintenance guides emphasize that the assembly is only as strong as the anchors and walls, and units should be removed from service if not adequately secured.

AEC detail checklist:

Blocking at planned dispenser locations
Appropriate anchors for substrate type
Alignment so the unit is not leveraged during refills

Spec-ready troubleshooting notes to include in closeout documents

Add a one-page O and M insert that includes:

Battery type and replacement interval targets for high-traffic zones
Priming steps after refill or service
Cleaning method for sensor window and nozzle
Bulk refill hygiene rules and cleaning interval
A simple escalation path: clean lens, check batteries, verify refill seating, then check nozzle clog

Category pages and system context for AEC teams

These category pages help specifiers compare system types, mounting styles, and refill architectures:

Bradley soap dispensers category:
https://www.bradleycorp.com/product-category/soap-dispenser

Bobrick soap dispensers and faucets category:
https://www.bobrick.com/product-catalog/categories/soap-dispensers-faucets/

ASI soap dispensers category:
https://americanspecialties.com/product_category/soap-dispensers/

Conclusion

Most touch-free soap dispenser problems fall into predictable groups: power and calibration, product flow and clogs, sensor line-of-sight conflicts, and mechanical wear at nozzles and seals. Fast troubleshooting starts with symptom classification, then power and refill verification, then nozzle and sensor cleaning, and finally environmental and placement corrections. For bulk refill systems, hygiene protocol is essential because peer-reviewed research shows contamination risk that can directly affect users. When AEC teams coordinate placement over the basin, provide proper backing, and include clear closeout troubleshooting steps, service calls drop and performance becomes consistent across the building portfolio.
